Model selection:TDTG26/13-TDTG80/46
1.Widely used in vertical transportation of feed, chemical industry, grain depot, port, wharf, malt, oil and other industries
2.Comprehensive safety configuration to ensure the best use and safety performance of the equipment
3.The barrel adopts a proprietary four-side occluding process, one-time molding, superior rigidity and sealing performance

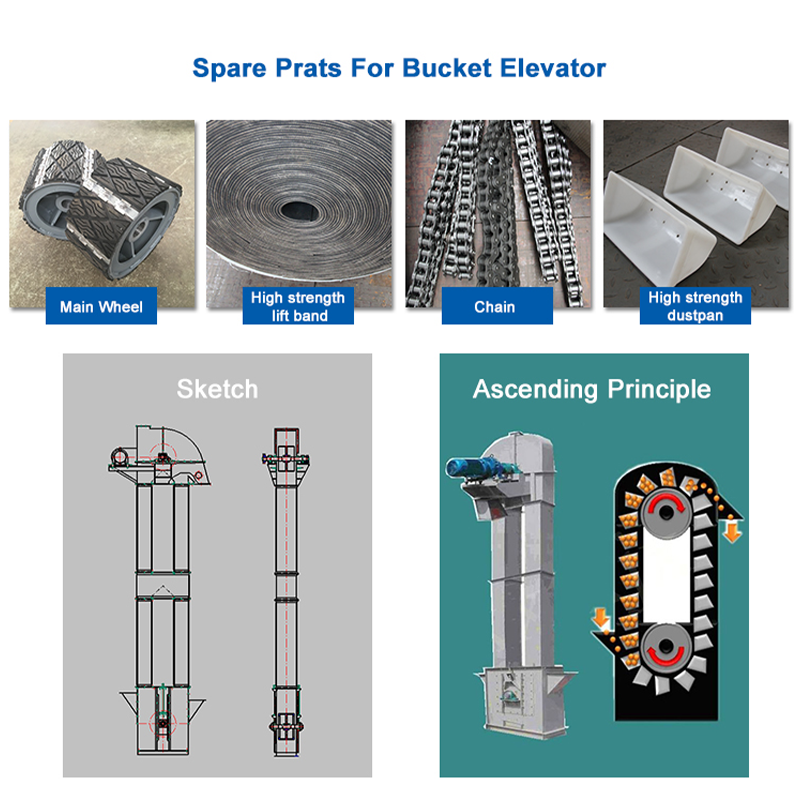

4.It can be equipped with a split head wheel, which greatly saves the cost of replacing the rubber on the head wheel
5.It can be equipped with a self-cleaning base and adopts a structure that combines coarse and fine adjustment to minimize residue
Product description:

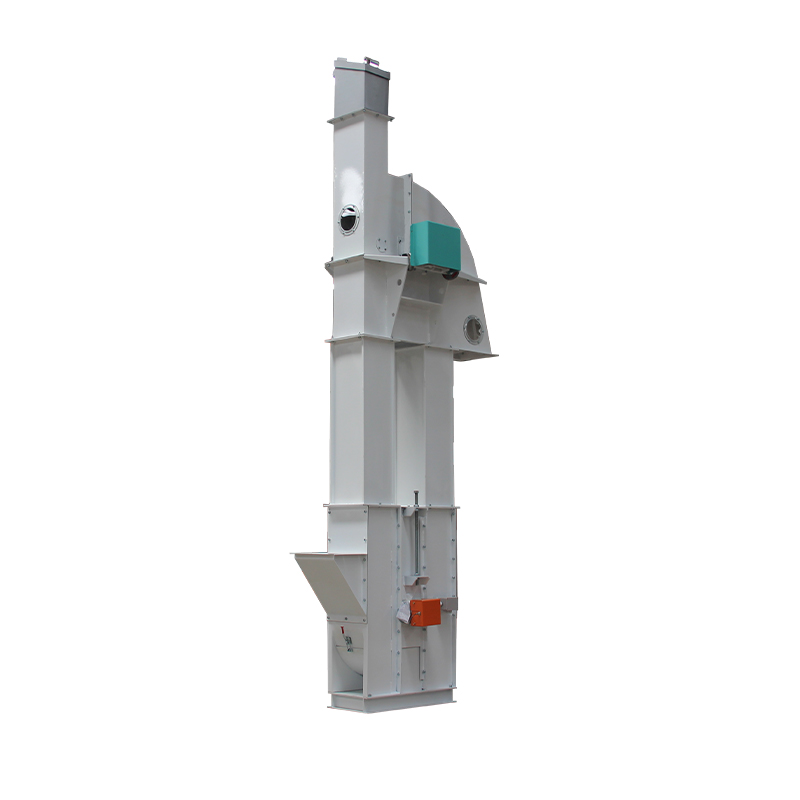

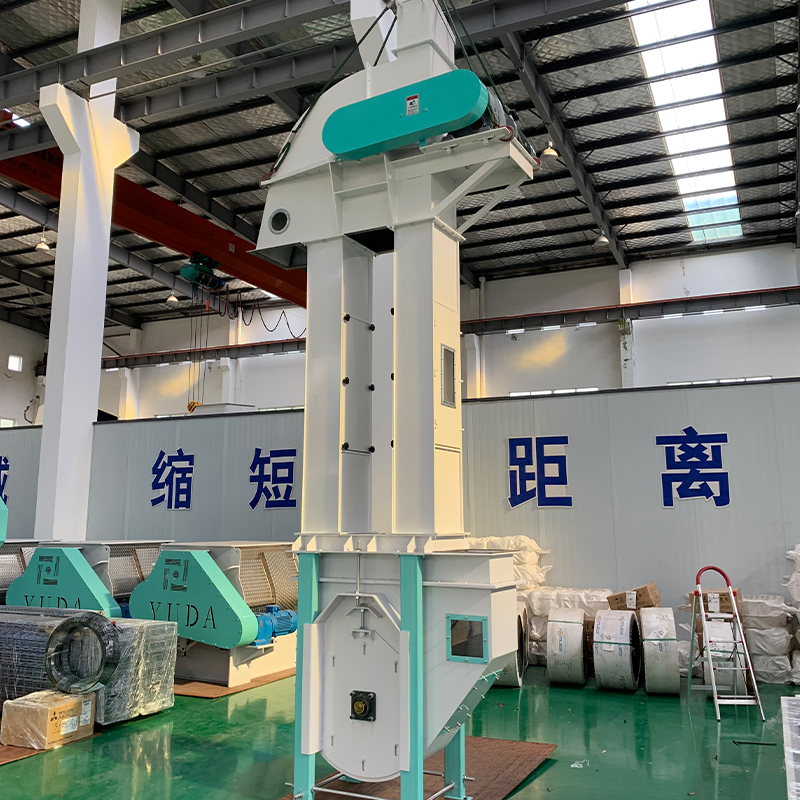

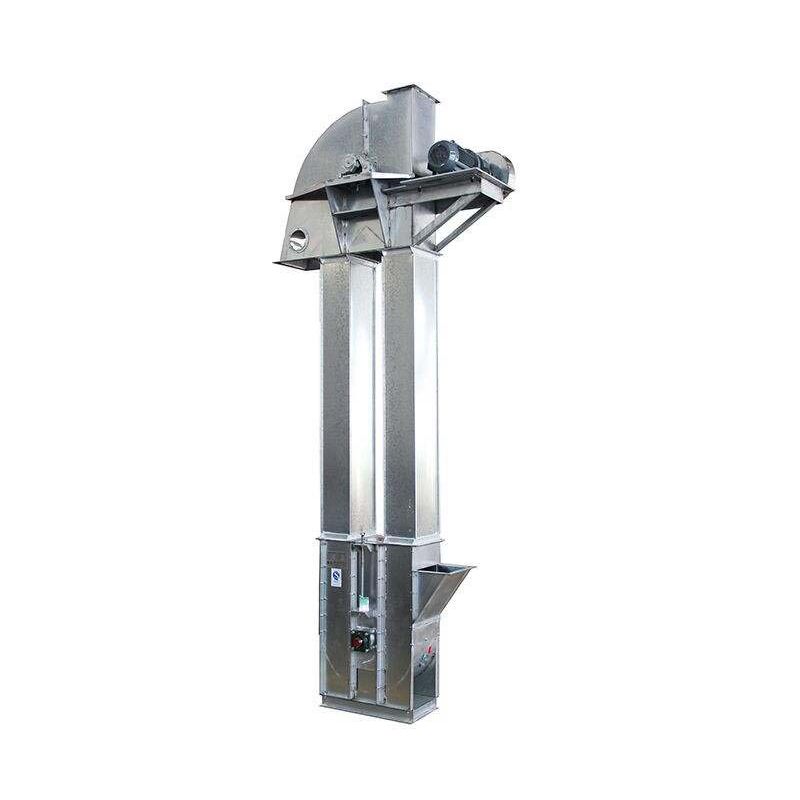

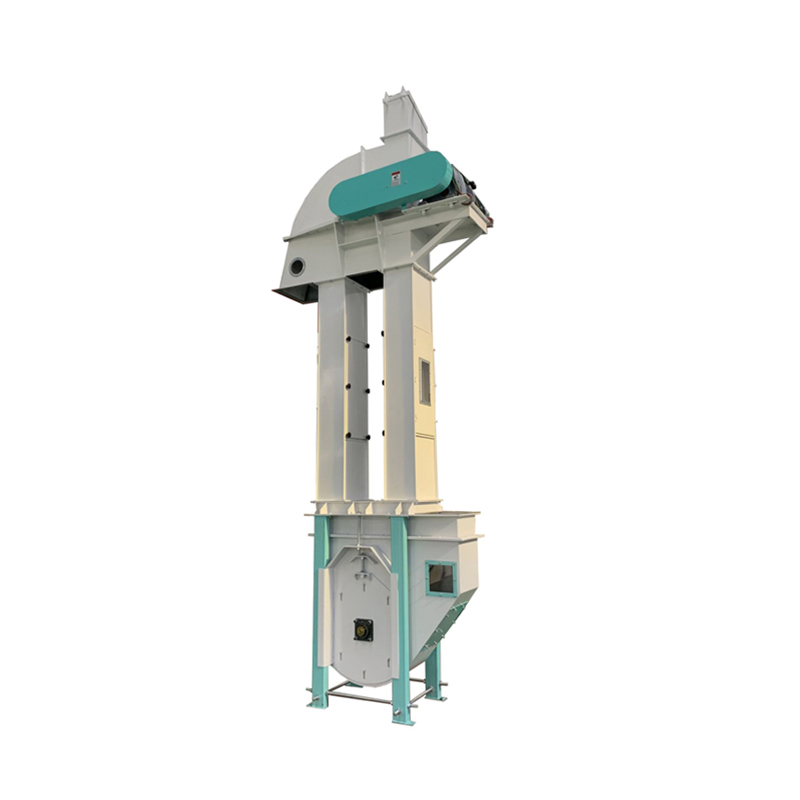

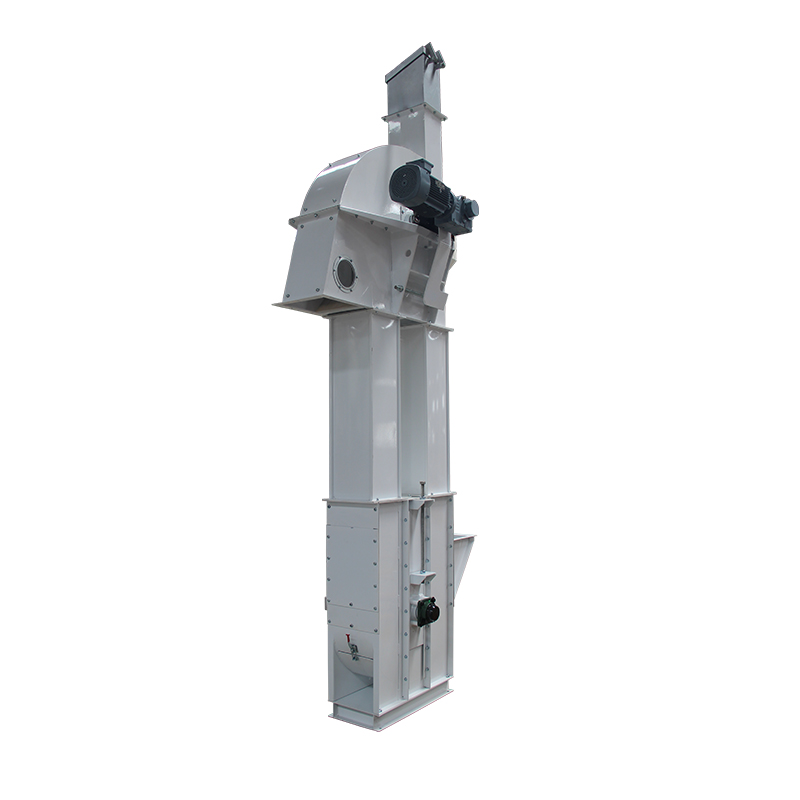

This series elevator used in grain and oil, food, feed and chemical particles, powder material of vertical elevator.
Features:
The design is novel, safe and reliable work, simple structure, fully functional, good sealing, low noise. Especially in the high yield, low flow, low failure rate and long service life to ensure the use efficiency. And powder, granule materials general equipped with explosion-proof cover, pressure balance device. Due to the hoisting height and yield can be handed in, flexible process layout, strengthen its adaptability. Therefore, for an ideal elevator equipment at present.
Model information:
| Model | Capacity (T/H) | Max Power | Max lift height |
| TDTG26/13 | 1-3 | ≤3KW | 20M |
| TDTG26/18 | 2-4 | ≤3KW | 25M |
| TDTG36/13 | 5-8 | ≤3KW | 25M |
| TDTG36/18 | 6-15 | ≤4KW | 30M |
| TDTG36/23 | 10-20 | ≤5.5KW | 30M |
| TDTG36/28 | 15-25 | ≤5.5KW | 35M |
| TDTG40/23 | 20-30 | ≤5.5KW | 35M |
| TDTG40/28 | 25-40 | ≤7.5KW | 40M |
| TDTG48/23 | 25-45 | ≤7.5KW | 40M |
| TDTG48/28 | 35-55 | ≤11KW | 45M |
| TDTG50/23 | 30-50 | ≤15KW | 45M |
| TDTG50/28 | 40-60 | ≤22KW | 45M |
| TDTG60/30 | 60-90 | ≤37KW | 45M |
| TDTG60/33 | 100-150 | ≤55KW | 45M |
| TDTG80/46 | 200-300 | ≤75KW | 45M |
