1.According to different requirements,configure U-shaped
cross-section,tubular and mult-cavity screw conveyors
2.Large bearing capacity,strong adaptability,easy
installation and maintenance,long life
3.U-shaped section design,arge output,easy to clean
4.The blades are arranged with equal diameter and variable
pitch to ensure the overall discharge
5.Optional anti-blocking alarm and speed alarm
Product description:

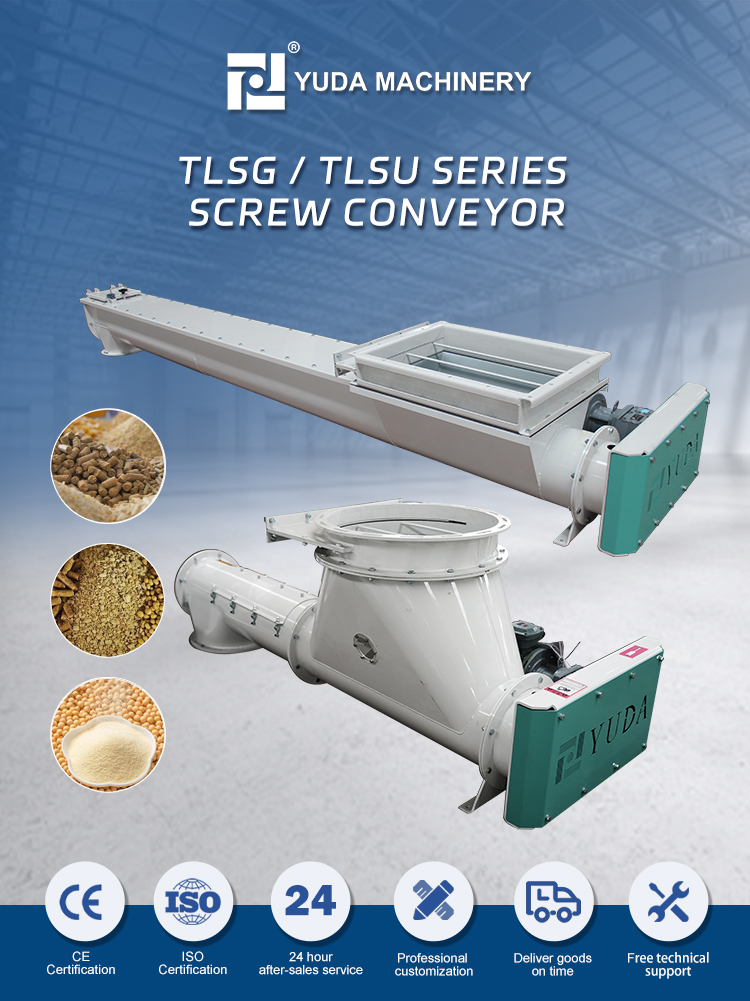

TLSU and TLSG series screw conveyors are a kind of mechanical conveying equipment with fixed devices. They are suitable for grain or powder feeding such as grain and oil feed. Horizontal conveying of materials, or inclined conveying close to horizontal (inclination angle ≤20°).
Features:
This machine adopts low-speed chain transmission structure, which has simple structure, good stability, good sealing effect and convenient maintenance.
Model information:
| Model | Max Power（KW） | Capacity（T/H） |
| TLSU/TLSG 10 | ≤3 | 1-3 |
| TLSU/TLSG 12 | ≤4 | 3-5 |
| TLSU/TLSG 16 | ≤5.5 | 5-8 |
| TLSU/TLSG 18 | ≤7.5 | 8-14 |
| TLSU/TLSG 20 | ≤7.5 | 12-20 |
| TLSU/TLSG 25 | ≤11 | 25-38 |
| TLSU/TLSG 28 | ≤11 | 30-50 |
| TLSU/TLSG 30 | ≤15 | 50-60 |
| TLSU/TLSG 32 | ≤15 | 50-70 |
| TLSU/TLSG 35 | ≤15 | 70-90 |
| TLSU/TLSG 40 | ≤15 | 100-120 |
